When you are looking for UIC SMT Nozzles, you may need to know what the exact nozzle suite for your components, please check the tables below, find the components size at the components types row, and check the nozzle part number at the firs row.

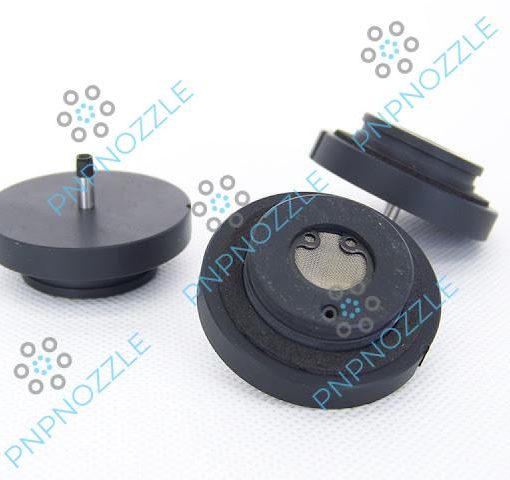

| Part Number | Nozzle Name | Head Type | Description | Tip Dimension Circular D in mm[in] Rectangular L X W in (mm [inch]) | Used for Components types |
| 51305414 | 3021 | HSC/FZ30 | HSC NOZZLE TIP 201K ASSY | 0.66×0.0.27 [0.026×0.011] | 201 |
| 51305415 | 3220 | HSC/FZ30 | NOZZ HSC, 1C-125/70C-CN | 3.125 [0.125] | 1812 1825 2010,2512, SOIC8, SOIC14,PLCC18 |
| 51305416 | 3420 | HSC/FZ30 | NOZZ HSC, IH-402/CERAMIC | 0.60 [0.024] | 402 |
| 51305417 | 3240 | HSC/FZ30 | NOZZ HSC, 1C-234-CN | 5.94 [0.234] | 2512, 2725, 2920, BGA, vBGA, SOIC18, SOJ42 |
| 51305419 | 4240 | HSC/FZ30 | NOZZ HSC, 1C-234-CNS2MM | 8.63 [0.34] | PLCC Socket, PLCC, QFP 100, QFP160, ALCAP, DPAK, SOT-223 |
| 51305421 | 3530 | HSC/FZ30 | NOZZ HSC, 1C-603/RT-CN | 0.91 [0.036] | 603 |
| 51305422 | 3540 | HSC/FZ30 | NOZZLE HSC, 805 | 1.29 [0.051] | 805 |
| 51305423 | 3550 | HSC/FZ30 | NOZZLE HSC, 1.8MM | 1.80 [0.071] | 1206 |
| 51305428 | 3260 | HSC/FZ30 | NOZZ HSC, 1C-340-CN | 8.63 [0.34] | PLCC100, PLCC32, PLCC84, QFP 100, QFP160, SOIC10 |
| 51305433 | 3030 | HSC/FZ30 | 402 CERAMIC BLADE NOZZLE -3030 | 0.93 [0.037] | 402 |
| 51305434 | 3040 | HSC/FZ30 | NOZZ HSC, -3040 MP-0603 | 1.37 [0.054] | 603 |
| 51305435 | 3011 | HSC/FZ30 | NOZZLE HSC 1005 | 0.40×0.22 [0.016×0.009] | 1005 |
| 51962001 | SCAL | HSC/FZ30 | NOZZLE CALIBRATION | NA | Spindle Calibration |
| 47561101 | NA | FJ07/FJ09 | NOZZLE 10MPF | 1.98 [0.078] | 0805, 1206, 1210, SOD, SOT |
| 47561112 | NA | FJ07/FJ09 | NOZZLE 8 MPF | 1.27 [0.005] | 0402, 0603, 0805, 1008, QFN, SOT-23 |
| 47561117 | NA | FJ07/FJ09 | NOZZLE G03 | 1.39×0.76 [0.055×0.030] | 603 |
| 47995064 | NA | FJ07/FJ09 | NOZZLE 95 | 2.41 [0.095] | 0805, 1206, 1210,1806, SOD, SOT |
| 49036901 | NA | FJ07/FJ09 | CAL/FID | 9.14 [0.360] | Calibration Parts |
| 50653201 | NA | FJ07/FJ09 | FJ 07/09 GRIPPER | 6.2 0x(2.54-8.25) [0.244x(0.100-0.3250] | Odd Form parts / connectors |
| 50684360 | NA | FJ07/FJ09 | NOZZ FJ, 1C-125/90C-CN | 3.17 [0.125] | 1812 1825 2010,2512, SOIC8, SOIC14,PLCC18, SOD |
| 51288155 | NA | FJ07/FJ09 | NOZZLE ASSY, FJ 083MF SD | 2.10 [0.083] | MELF-3.4×1.4 to MELF-9.3×2.6 |
| 51305216 | NA | FJ07/FJ09 | NOZZ FJ, 1H-234F-CN | 6.04 [0.238] | 2512, 2725, 2920, AlCap 10×10, BGA, vBGA, SOIC18, SOJ42, Dpak |
| 51305217 | NA | FJ07/FJ09 | NOZZ FJ, 1H-125-CN | 3.17 [0.125] | 1812 1825 2010,2512, SOIC8, SOIC14,PLCC18, SOD |
| 51305218 | NA | FJ07/FJ09 | NOZZ FJ, 1C-340-CN | 8.63 [0.340] | PLCC100, PLCC32, PLCC84, QFP 100, QFP160, SOIC10, LCC |
| 51305219 | NA | FJ07/FJ09 | NOZZ FJ, 1C-234-CN | 5.95 [0.235] | 2512, 2725, 2920, AlCap 10×10, BGA, vBGA, SOIC18, SOJ42, Dpak |
| 51305220 | NA | FJ07/FJ09 | NOZZ FJ, 1C-125/70C-CN | 3.17 [0.125] | 1812 1825 2010,2512, SOIC8, SOIC14,PLCC18, SOD |
| 51305222 | NA | FJ07/FJ09 | NOZZ FJ, 1C-120M.CUP-CN | 3.17 [0.125] | 1812 1825 2010,2512, SOIC8, SOIC14,PLCC18, SOD |
| 51305223 | NA | FJ07/FJ09 | NOZZLE ASSY, FJ 402 SD | 1.17×0.35 [0.046 x0.013] | 402 |
| 51305224 | NA | FJ07/FJ09 | NOZZLE ASM, FJ08MPF SD | 1.27 [0.050] | 0402, 0603, 0805, 1008, 1206, QFN, SOT-23 |
| 51305225 | NA | FJ07/FJ09 | NOZZLE ASM,FJ 08MPFX SD | 1.27 [0.050] | 0402, 0603, 0805, 1008, 1206, QFN, SOT-23 |
| 51305226 | NA | FJ07/FJ09 | NOZZLE ASM,FJ 603 SD | 1.42×0.58 [0.056 x0.020] | 603 |
| 51305227 | NA | FJ07/FJ09 | NOZZLE ASM,FJ 10MPF SD | 1.90 [0.075] | 0805, 1206, 1210, SOD, SOT |
| 51305228 | NA | FJ07/FJ09 | NOZZLE ASSY, FJ 042MF SD | 1.32 [0.052] | MELF-2.0×1.3 |

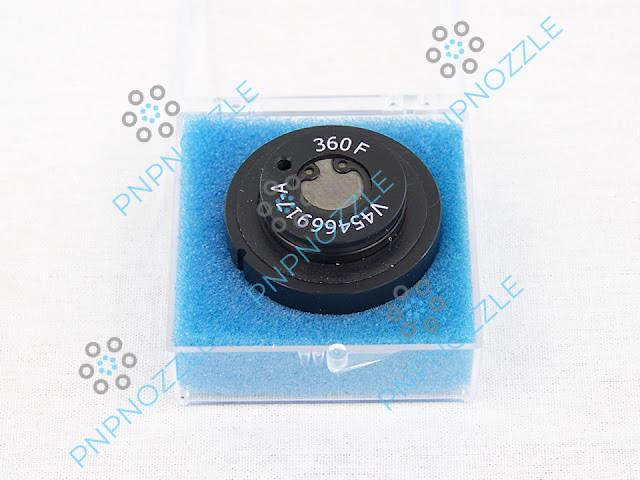

| 51305229 | NA | FJ07/FJ09 | NOZZLE ASM,FJ 360F SD | 9.14 [0.360] | PLCC100, PLCC32, PLCC84, QFP 100, QFP160, SOIC10 |
| 53500086 | NA | C4/Uflex | GRIP, UF, PNEU/ECAP/HORIZ/5ODX11.2L/90 BEND | 6.30×11.17 [0.248×0.440] | Horizontal E-Capcitor 5 mm OD x 11.2 mm L, with 90 Degree bent lead |
| 53760642 | NA | C4/Uflex | GRIP, UF PNEU BOX CAP | 9.53×22.5 [0.375×0.885] | Box Capacitor 10 mm x 22.5 mm, Radial leads, 2 pin |
| 53760643 | NA | C4/Uflex | GRIP, UF PNEU, ECAN/HORIZ 12.5X20.0MM | 11.67×24.43 [0.459×0.962] | Horizontal E-Capcitor 12.5 mm OD x 20 mm body L, with 90 Degree bent lead |
| 53760644 | NA | C4/Uflex | GRIP, UF, PNEU/6 PIN TERMINAL | 8.64×11.17 [0.340×0.440] | 6 pin Terminal block |
| 53760645 | NA | C4/Uflex | GRIP UF, PNEU, SM COIL | 20.07×23.62 [0.790×0.930] | SM Coil, Transformers |
| 53760646 | NA | C4/Uflex | GRIP UF, PNEU, LG COIL | 19.05×32.51 [0.750×1.280] | LG Coil, Transformers |
| 53760647 | NA | C4/Uflex | GRIP, UF PNEU, MOV/AY2 | 7.00×4.72 [0.267×0.188] | Mov, 7.5 mm Dia, 4.73 mm TH |
| 53760648 | NA | C4/Uflex | GRIP, UF, PNEU/ 32MM CYL | 19.05×32.00 [0.750×1,259] | 32 mm Cylindrical parts, Ecaps |
| 53760649 | NA | C4/Uflex | GRIP, UF, PNEU/BLADE | 35.56×26.36 [1.400×1.038] | Special Terminal Block |
| 53760650 | NA | C4/Uflex | GRIP, UF, PNEU, CONN LONG | 5.23×47.11 [0.205×1.855] | OFA Connector |
| 53760651 | NA | C4/Uflex | GRIP, UF PNEU/MOV/11ODX3.8TH | 7.00×3.63 [0.267×0.143] | Mov,11.05 mm Dia, 3.641 mm TH |
| 53760652 | NA | C4/Uflex | GRIP, UF, PNEU/12 PIN RT ANG CONN | 8.64×14.38 [0.340×0.566] | Header Connector, 6 pin x 2 row, right angle bent leads |
| 53760653 | NA | C4/Uflex | GRIP UF, PNEU, AXIAL RESISTOR | 18.03 x0.60 [0.710×0.024] | Axial Resistor, 15 MM lead pitch |
| 53760654 | NA | C4/Uflex | GRIP UF, PNEU/CU HEAT SINK | 10.00×20.00 [0.394 x0.787] | Copper Heat sink, 23 x20 x 3.95 [LxWxTh in mm] |
| 53760655 | NA | C4/Uflex | GRIP UF, PNEU/AL HEAT SINK | Aluminium Heat Sink, 6.37×5.64×4.82 [LxWxTh in mm] | |
| 54036330 | NA | C4/Uflex | GRIP, UF, PNEU/HORIZ ECAP/6.3X12.5 | 6.2×12.5 [0.244×0.492] | Ecap 6.5mm OD, 12.5 mm Body length with S bend 90 degree leads |
