Description
We supply large quantity of Nozzles for Samsung Hanwha EXCEN Pick and Place machine. Both of original and alternative nozzless are available.

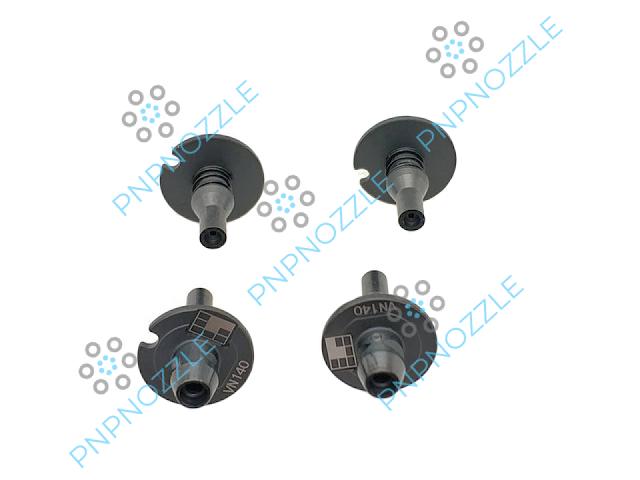

The good quality and competitive price of Samsung Hanwha Excen Nozzle VN140 will save your money on the consumables.
If you are looking for AM03-000072A, please send us your RFQ or submit your inquiry at the “Ask for a quotation” tag.
The nozzles listed below are the common nozzle, if you cannot find what you are looking for, please send us your drawing of nozzles.
General nozzles
Nozzles should be properly selected according to the type and size of the components.The nozzle should be selected correctly since it may cause improper adsorption, or improper placement problems. The nozzles generally used are shown in Table. For accurate pickup and placement, a proper nozzle should be selected in reference to the minimum suction area of each component.
Samsung Hanwha Nozzles application
| Nozzle Name | Outer diameter | Inner diameter | Minimum component width | Major component types |
| CN020 | Ф 0.50 | Ф 0.16 | 0.2~0.5 | 0402 Chip only, Material number J90551006A (Fly Camera FOV 10 mm option) |
| CN030 | Ф 0.60 | Ф 0.28 | 0.3 ~ 1.5 | 0603,1005 Chip only, Material number J9055133C (Fly Camera FOV 15 mm option) |
| CN040 | Ф 0.75 | Ф 0.38 | 0.5 ~ 1.25 | 1005, 1608, SOT(Molded part 1.6 x 0.8), Material number J9055134C |
| CN065 | Ф 1.2 | Ф 0.65 | 0.8 ~ 2.5 | 2012, 3216, MELF(Molded part 1.2 X 2.0), SOT23 |
| CN140 | Ф 2.2 | Ф 1.4 | 2.5 ~ 4.0 | Aluminum electrolytic capacitor(small), Tantalum capacitor, Trimmer |
| CN220 | Ф 3.6 | Ф 2.2 | 4.0 ~ 7.0 | Aluminum electrolytic capacitor(medium), SOP(Narrow), SOJ, Connector |
| CN400N | Ф 6.2 | Ф 4.0 | 7.0 ~ 10.0 | Aluminum electrolytic capacitor(large), SOP(Wide), TSOP, QFP, PLCC, SOJ, Connector |
| CN750 | Ф 9.0 | Ф 7.5 | 20.0 ~ | QFP(medium), PLCC(medium) |
| CN110 | Ф 12.7 | Ф 11.0 | QFP(large), PLCC(large) / CN1100 | |
| CNT | Calibration Tool (Nozzle) |
