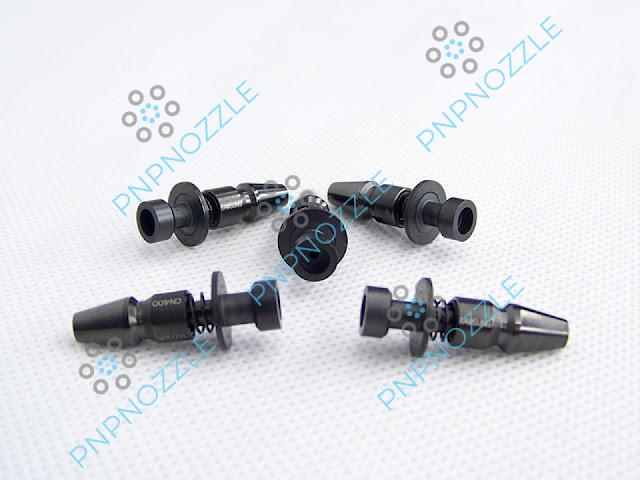

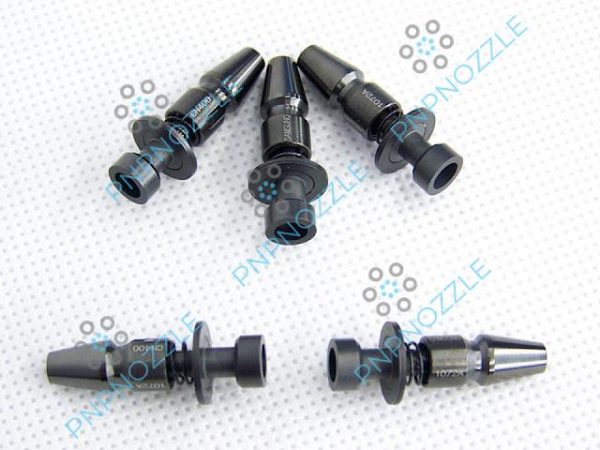

Samsung Hanwha CP45 NEO SM300 SM400 NOZZLE CN400 6.20 OD 4.00 ID

Description

We supply large quantity of Nozzles for Samsung Hanwha CP45NEO SM300 SM400 Pick and Place machine. Both of original and alternative nozzless are available.
The good quality and competitive price of Samsung Hanwha CP45 NEO SM300 SM400 NOZZLE CN400 6.20 OD 4.00 ID will save your money on the consumables.
If you are looking for J9055258A, please send us your RFQ or submit your inquiry at the “Ask for a quotation” tag.
The nozzles listed below are the common nozzle, if you cannot find what you are looking for, please send us your drawing of nozzles.

General nozzles

Nozzles should be properly selected according to the type and size of the components.The nozzle should be selected correctly since it may cause improper adsorption, or improper placement problems. The nozzles generally used are shown in Table. For accurate pickup and placement, a proper nozzle should be selected in reference to the minimum suction area of each component.

Samsung Hanwha Nozzles application

Nozzle Name	Outer diameter	Inner diameter	Minimum component width	Major component types
CN020	Ф 0.50	Ф 0.16	0.2~0.5	0402 Chip only, Material number J90551006A (Fly Camera FOV 10 mm option)
CN030	Ф 0.60	Ф 0.28	0.3 ~ 1.5	0603,1005 Chip only, Material number J9055133C (Fly Camera FOV 15 mm option)
CN040	Ф 0.75	Ф 0.38	0.5 ~ 1.25	1005, 1608, SOT(Molded part 1.6 x 0.8), Material number J9055134C
CN065	Ф 1.2	Ф 0.65	0.8 ~ 2.5	2012, 3216, MELF(Molded part 1.2 X 2.0), SOT23
CN140	Ф 2.2	Ф 1.4	2.5 ~ 4.0	Aluminum electrolytic capacitor(small), Tantalum capacitor, Trimmer
CN220	Ф 3.6	Ф 2.2	4.0 ~ 7.0	Aluminum electrolytic capacitor(medium), SOP(Narrow), SOJ, Connector
CN400N	Ф 6.2	Ф 4.0	7.0 ~ 10.0	Aluminum electrolytic capacitor(large), SOP(Wide), TSOP, QFP, PLCC, SOJ, Connector
CN750	Ф 9.0	Ф 7.5	20.0 ~	QFP(medium), PLCC(medium)
CN110	Ф 12.7	Ф 11.0		QFP(large), PLCC(large) / CN1100
CNT				Calibration Tool (Nozzle)
