Description

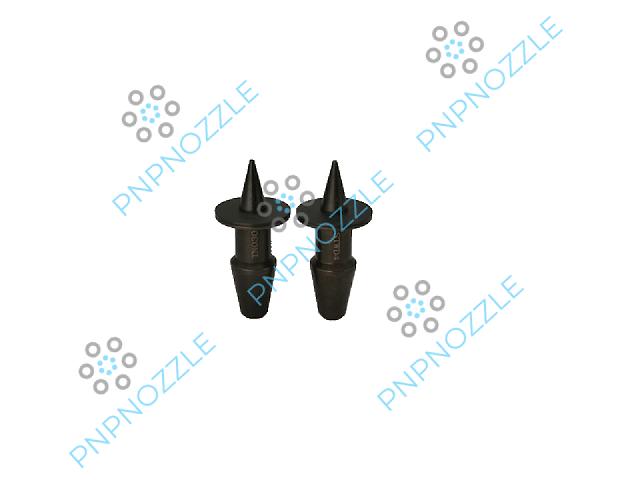

We offer Samsung Hanwha CP-45FV CP-50 CP-60 Series CP45 Nozzle TN030 0.25mm ID 0.55mm OD SMT pick and place machine, send us your inquiry if you cannot find what you are looking for.
The application of the whole series Samsung Hanwha nozzles listed below for your reference.
General nozzles
Nozzles should be properly selected according to the type and size of the components.The nozzle should be selected correctly since it may cause improper adsorption, or improper placement problems. The nozzles generally used are shown in Table. For accurate pickup and placement, a proper nozzle should be selected in reference to the minimum suction area of each component.
Samsung Hanwha Nozzles application
| Nozzle Name | Outer diameter | Inner diameter | Minimum component width | Major component types |
| CN020 | Ф 0.50 | Ф 0.16 | 0.2~0.5 | 0402 Chip only, Material number J90551006A (Fly Camera FOV 10 mm option) |
| CN030 | Ф 0.60 | Ф 0.28 | 0.3 ~ 1.5 | 0603,1005 Chip only, Material number J9055133C (Fly Camera FOV 15 mm option) |
| CN040 | Ф 0.75 | Ф 0.38 | 0.5 ~ 1.25 | 1005, 1608, SOT(Molded part 1.6 x 0.8), Material number J9055134C |
| CN065 | Ф 1.2 | Ф 0.65 | 0.8 ~ 2.5 | 2012, 3216, MELF(Molded part 1.2 X 2.0), SOT23 |
| CN140 | Ф 2.2 | Ф 1.4 | 2.5 ~ 4.0 | Aluminum electrolytic capacitor(small), Tantalum capacitor, Trimmer |
| CN220 | Ф 3.6 | Ф 2.2 | 4.0 ~ 7.0 | Aluminum electrolytic capacitor(medium), SOP(Narrow), SOJ, Connector |
| CN400N | Ф 6.2 | Ф 4.0 | 7.0 ~ 10.0 | Aluminum electrolytic capacitor(large), SOP(Wide), TSOP, QFP, PLCC, SOJ, Connector |
| CN750 | Ф 9.0 | Ф 7.5 | 20.0 ~ | QFP(medium), PLCC(medium) |
| CN110 | Ф 12.7 | Ф 11.0 | QFP(large), PLCC(large) / CN1100 | |
| CNT | Calibration Tool (Nozzle) |
Updated Date: 2023-04-25
