1003 Nozzle N610098971AA
Panasonic SMT nozzles and spare parts

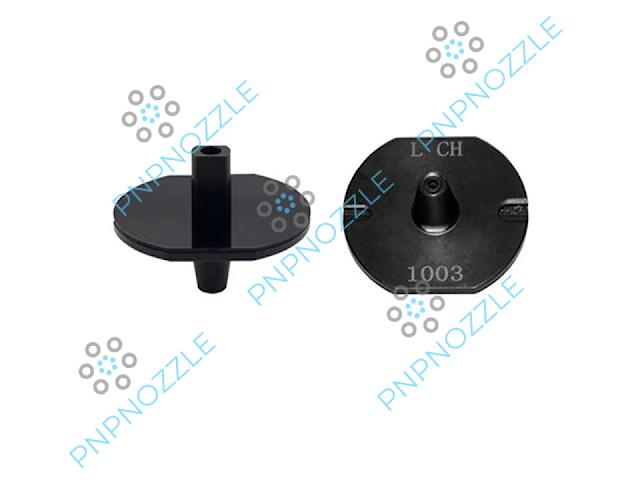

Panasonic CM NPM Type 1003 Nozzle N610098971AA

Panasonic CM NPM Type 1003 1003N Nozzle N610098971AA KXFW10YAA00
Used for: Panasonic CM202 CM212 CM402 CM602 NPM Pick and Place machine.
Condition: New, Original or Alternate
Part Number: N610098971AA KXFW10YAA00
Availability: 48 hours to 2 weeks depending on ordering quantity.

SKU: PNA-CM-NPM-0003 Categories: , Tag:
Thank you for sharing good thing

Description

We supply large quantity of Nozzles for Panasonic CM202 CM212 CM402 CM602 NPM Pick and Place machine. Both of original and alternative nozzless are available.
The good quality and competitive price of Panasonic CM NPM Type 1003 Nozzle KXFW10YAA00 N610098971AA will save your money on the consumables.
If you are looking for KXFW10YAA00 N610098971AA, please send us your RFQ or submit your inquiry at the “Ask for a quotation” tag.
The nozzles listed below are the common nozzle, if you cannot find what you are looking for, please send us your drawing of nozzles.

Nozzle for Multi-functional head, used for CM301-D CM301-DU CM301-DS Machines.

No.Part NumberPart NameRemark
1KXFW1ASAA00NOZZLE No.1001
2KXFW1ATAA00NOZZLE No.1002
3KXFW10YAA00NOZZLE No.1003
4KXFW1AUAA00NOZZLE No.1004
5KXFW1AVAA00NOZZLE No.1005
6KXFA1FGAA00NOZZLE
7KXFW1H0AA00NOZZLE
8KXFW1H1AA00NOZZLE
9KXF07QUAA00PADKP-8-N
10KXF07QVAA00PADKP-10-N
11KXFW1GYAA00REFLECTOR
12KXFA1AFAA00BOLT
13KXFW1GZAA00NOZZLE

Nozzle for High-speed head used for CM201-D CM202-D CM201-DU CM202-DU CM201-DH CM202-DH CM202-DHU CM201-DS CM202-DS CM202-DK Machines.

No.Part NumberPart NameRemark
1KXFX04MSA00NOZZLE No.110
2KXFX04MTA00NOZZLE No.115
3KXFX04MUA00NOZZLE No.120
4KXFX04MVA00NOZZLE No.130
5KXFX04MXA00NOZZLE No.140
6KXFX04MZA00NOZZLE No.450
7KXFX04MWA00NOZZLE
8KXFB0106A00PAD
9KXFX04MYA00NOZZLE
10KXFB0109A00PAD
11KXFX04N0A00NOZZLE No.205

Nozzle for High-speed head(8-nozzle) usded for CM401-M CM401-L CM402-M CM402-L CM400-M CM602-L CM212-M machines.

No.Part NumberPart NameRemark
1KXFX0383A00NOZZLE No.110
2KXFX037NA00NOZZLE No.115A
3KXFX0384A00NOZZLE No.120
4KXFX0385A00NOZZLE No.130
5KXFX0386A00NOZZLE No.140
6KXFX0387A00NOZZLE No.450
7KXFX03DLA01NOZZLE
8KXFB0106A00PAD
9KXFX03DNA01NOZZLE
10N210055331AAPAD
11N610000995AANOZZLE No.205
12KXFX03NGA00NOZZLE No.460
13KXFX05V2A00NOZZLE No.206A
14KXFY00DTA00NOZZLE
15KXF07QVAA00PAD
16N610040782AANOZZLE No.225C
17N610040783AANOZZLE No.226C
18N610040784AANOZZLE No.230C
19N610043814AANOZZLE No.235C
20N610062681AANOZZLE No.240C

Nozzle for Multi-functional head used for CM401-M CM401-L CM402-M CM402-L CM400-M CM602-L CM212-M DT401-M DT401-F DT400-M Machines

No.Part NumberPart NameRemark
1KXFX037SA00NOZZLE No.1001
2KXFX037TA00NOZZLE No.1002
3KXFX037UA00NOZZLE No.1003
4KXFX037VA00NOZZLE No.1004
5KXFX037WA00NOZZLE No.1005
6KXFX037XA00NOZZLE No.1006
7KXFB01MHA00NOZZLE
8KXFX03DXA00NOZZLE
9KXFX03DZA00NOZZLE
10KXF07QUAA00PADKP-8-N
11KXF07QVAA00PADKP-10-N
12KXFX03DRA00REFLECTOR
13KXFB03KNA00BOLT
14KXFX03DTA00NOZZLE
15KXFB03KPA00SCREW
16KXFX03DVA00NOZZLE

Special Nozzle for Multi-functional head used for CM401-M CM401-L CM402-M CM402-L CM400-M CM602-L CM212-M DT401-M DT401-F DT400-M Machines.

No.Part NumberPart NameRemark
1KXFX05GHA00NOZZLE No.1518dedicated orifice
2KXFX05GZA00NOZZLE No.1528dedicated orifice
3KXFX05G9A00NOZZLE No.1514dedicated orifice
4KXFX05L9A00NOZZLE No.1604dedicated orifice
5KXFX05KRA00NOZZLE No.1580dedicated orifice
6KXFX05ASA00NOZZLE No.1479dedicated orifice
7KXFX0556A00NOZZLE No.1403dedicated orifice
8KXFX04U4A00NOZZLE No.1191dedicated orifice
9KXFX04YKA00NOZZLE No.1272dedicated orifice
10KXFX04PQA00NOZZLE No.1118dedicated orifice
11KXFX04NBA00NOZZLE No.1101dedicated orifice
12KXFX04X8A00NOZZLE No.1248dedicated orifice
13KXFX04PCA00NOZZLE No.1112dedicated orifice
14KXFX04W6A00NOZZLE No.1229dedicated orifice
15KXFX05BVA00NOZZLE No.2405dedicated orifice
16KXFX04U6A00NOZZLE No.1192dedicated orifice
17KXFX04XEA00NOZZLE No.1252dedicated orifice
18KXFX04TGA00NOZZLE No.1180dedicated orifice
19KXFX04UQA00NOZZLE No.1202dedicated orifice
20KXFX04P6A00NOZZLE No.1109dedicated orifice
21KXFX04QAA00NOZZLE No.1128dedicated orifice
22KXFX05MXA00NOZZLE No.1656dedicated orifice
23KXFX04XAA00NOZZLE No.1249dedicated orifice
24KXFX051JA00NOZZLE No.1333dedicated orifice
25KXFX0558A00NOZZLE No.1404dedicated orifice
26KXFX04PJA00NOZZLE No.1115dedicated orifice
27KXFX04T0A00NOZZLE No.1173dedicated orifice
28KXFX04NXA00NOZZLE No.1105dedicated orifice
29KXFX05DRA00NOZZLE No.2437dedicated orifice
30KXFX056AA00NOZZLE No.1421dedicated orifice
31KXFX04QUA00NOZZLE No.1137dedicated orifice
32KXFX04RJA00NOZZLE No.1148dedicated orifice
33KXFX04WNA00NOZZLE No.1237dedicated orifice

Special Nozzle for Multi-functional head used for CM301-D

No.Part NumberPart NameRemark
1KXFX05GGA00NOZZLE No.1518
2KXFX05GYA00NOZZLE No.1528
3KXFX05G8A00NOZZLE No.1514
4KXFX05L8A00NOZZLE No.1604
5KXFX05KQA00NOZZLE No.1580
6KXFX05ARA00NOZZLE No.1479
7KXFX0555A00NOZZLE No.1403
8KXFX04U3A00NOZZLE No.1191
9KXFX04YJA00NOZZLE No.1272
10KXFX04PPA00NOZZLE No.1118
11KXFX04NDA00NOZZLE No.1101
12KXFX04X7A00NOZZLE No.1248
13KXFX04PBA00NOZZLE No.1112
14KXFX04W5A00NOZZLE No.1229
15KXFX05BUA00NOZZLE No.2405
16KXFX04U5A00NOZZLE No.1192
17KXFX04XDA00NOZZLE No.1252
18KXFX04TFA00NOZZLE No.1180
19KXFX04UPA00NOZZLE No.1202
20KXFX04P5A00NOZZLE No.1109
21KXFX04Q9A00NOZZLE No.1128
22KXFX05MWA00NOZZLE No.1656
23KXFX04X9A00NOZZLE No.1249
24KXFX051HA00NOZZLE No.1333
25KXFX0557A00NOZZLE No.1404
26KXFX04PHA00NOZZLE No.1115
27KXFX04SZA00NOZZLE No.1173
28KXFX04NYA00NOZZLE No.1105
29KXFX05DQA00NOZZLE No.2437
30KXFX0568A00NOZZLE No.1421
31KXFX04QTA00NOZZLE No.1137
32KXFX04RGA00NOZZLE No.1148
33KXFX04WMA00NOZZLE No.1237

Nozzle For High-speed head(12-nozzle) used for CM602-L Machine

No.Part NumberPart NameRemark
1N610017370ACNOZZLE No.205S
2N610030510ACNOZZLE No.206AS
3N610017371ACNOZZLE No.110S
4N610017372ACNOZZLE No.115AS
5N610017373ACNOZZLE No.120S
6N610017375ACNOZZLE No.130S
7N610040786AANOZZLE No.225CS
8N610040787AANOZZLE No.226CS
9N610040788AANOZZLE No.230CS
10N610043815AANOZZLE No.235CS
11N610040853AANOZZLE No.240CS

Nozzle Parts List For NPM series

For 16 nozzle head and 12 nozzle head

No.Part NumberPart NameRemark
1N610038265ABNOZZLE No.203ZS
2N610119472AANOZZLE No.203ZSNMark Bar Code
3N610043702ABNOZZLE No.140S
4N610119473AANOZZLE No.140SNMark Bar Code
5N610040786ABNOZZLE No.225CS
6N610119479ABNOZZLE No.225CSNMark Bar Code
7N610040787ABNOZZLE No.226CS
8N610119480ABNOZZLE No.226CSNMark Bar Code
9N610040788ADNOZZLE No.230CS
10N610119484ABNOZZLE No.230CSNMark Bar Code
11N610043815ADNOZZLE No.235CS
12N610119485ABNOZZLE No.235CSNMark Bar Code
13N210158626AAPAD 1
14N610040853ADNOZZLE No.240CS
15N610119486ABNOZZLE No.240CSNMark Bar Code

For 8 nozzle head

No.Part NumberPart NameRemark
1N610029201ABNOZZLE No.203Z
2N610119430AANOZZLE No.203ZNMark Bar Code
3KXFX0386A00NOZZLE No.140
4N610099376AANOZZLE No.140NMark Bar Code
5N610070338ABNOZZLE No.185
6N610119411AANOZZLE No.185NMark Bar Code
7N610070079ABNOZZLE No.199
8N610119407AANOZZLE No.199NMark Bar Code
9N610040782ABNOZZLE No.225C
10N610119487ABNOZZLE No.225CNMark Bar Code
11N610040783ABNOZZLE No.226C
12N610119490ABNOZZLE No.226CNMark Bar Code
13N210158626AAPAD
14N210158627AAPAD
15KXF07QVAA00PAD KP-10-N
16N610040784ADNOZZLE No.230C
17N610119493ABNOZZLE No.230CNMark Bar Code
18N610043814ADNOZZLE No.235C
19N610119496ABNOZZLE No.235CNMark Bar Code
20N610062681ADNOZZLE No.240C
21N610119499ABNOZZLE No.240CNMark Bar Code

For 2 nozzle head and 3 nozzle head

No.Part NumberPart NameRemark
1KXFX05KVA00NOZZLE No.1582
2N610099244AANOZZLE No.1582NMark Bar Code
3KXFX037SA00NOZZLE No.1001
4N610098969AANOZZLE No.1001NMark Bar Code
5KXFX037TA00NOZZLE No.1002
6N610098970AANOZZLE No.1002NMark Bar Code
7KXFX037UA00NOZZLE No.1003
8N610098971AANOZZLE No.1003NMark Bar Code
9KXFX037VA00NOZZLE No.1004
10N610098972AANOZZLE No.1004NMark Bar Code
11KXFX037WA00NOZZLE No.1005
12N610098973AANOZZLE No.1005NMark Bar Code
13KXFB0F1MA00SCREW
14KXFB03KNA00BOLT
15KXFB01MHA00NOZZLE
16KXFB01MJA00NOZZLE
17KXFB03KPA00SCREW
18KXF07QUAA00PAD KP-8-N
19KXF07QVAA00PAD KP-10-N
1KXFX037XA00NOZZLE No.1006
2N610114702AANOZZLE No.1006NMark Bar Code
1KXFX05J7A00NOZZLE No.1551
2N610127747AANOZZLE No.1551NMark Bar Code
3KXFX05ASA00NOZZLE No.1479
4N610117226AANOZZLE No.1479NMark Bar Code 1
5KXFX05BVA00NOZZLE No.2405
6N610117223AANOZZLE No.2405NMark Bar Code
7KXFX0558A00NOZZLE No.1404
8N610117224AANOZZLE No.1404NMark Bar Code
9KXFX056AA00NOZZLE No.1421
10N610117225AANOZZLE No.1421NMark Bar Code
11KXFX05F9A00NOZZLE No.2467
12N610128174AANOZZLE No.2467NMark Bar Code
13KXFB0F1MA00SCREW
1KXFX04PJA00NOZZLE No.1115
2N610117221AANOZZLE No.1115NMark Bar Code
3KXFX05CMA00NOZZLE No.2418
4N610117211AANOZZLE No.2418NMark Bar Code
5KXFX056PA00NOZZLE No.1424
6N610127619AANOZZLE No.1424NMark Bar Code
7KXFX0570A00NOZZLE No.1427
8N610127623AANOZZLE No.1427NMark Bar Code
9KXFB0F1MA00SCREW
10KXF08KPAA00PAD KP-3.5-N

Updated Date: 2023-04-25
