Description
We supply large quantity of Nozzles for JUKI RS-1 Pick and Place machine. Both of original and alternative nozzless are available.

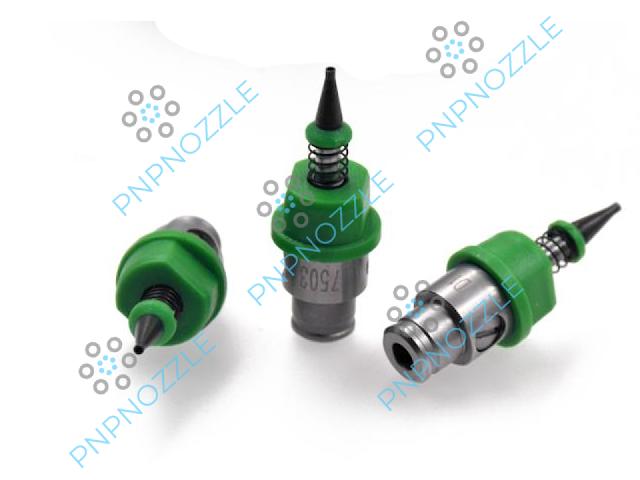

The good quality and competitive price of JUKI RS-1 Nozzle 7503 Assembly 1.0 OD x 0.6 ID will save your money on the consumables.
If you are looking for , please send us your RFQ or submit your inquiry at the “Ask for a quotation” tag.
The nozzles listed below are the common nozzle, if you cannot find what you are looking for, please send us your drawing of nozzles.
LED Binning control
LEDs are typically sorted into bins according to their brightness. Some applications require all LEDs placed on a board to be from the same bin code to ensure uniformity of the end product. LED binning control on the placement machine will count the number of LEDs on each feeder and display a warning if there are not enough to complete the board.
Nozzles for LED components,JUKI offers a variety of nozzles for the assembly of LED components.
Juki Nozzles Application
| Nozzle Name | Outer diameter | Inner diameter | component width | Major component types |
| 101 | 1 | 0.4 | D < 1.1 | 1005, 1608, SOT(Molded part 1.6 x 0.8) |
| 102 | 1.5 | 1 | 1.1 <= D < 2.5 | |
| 104 | 4 | 3.2 | 4.0 <= D < 7.0 | Aluminum electrolytic capacitor(medium), SOP(Narrow), SOJ, Connector |
| 103 | 3 | 1.7 | 2.5 <= D < 4.0 | Aluminum electrolytic capacitor(small), Tantalum capacitor, Trimmer |
| 105 | 6.5 | 5 | 7.0 <= D < 10.0 | Aluminum electrolytic capacitor(large), SOP(Wide), TSOP, QFP, PLCC, SOJ, Connector |
| 201 | 3.5 | 1.5 | ||
| 202 | 5.5 | 3.2 | 4.0 <= D < 7.0 | Aluminum electrolytic capacitor(medium), SOP(Narrow), SOJ, Connector |
| 204 | 9.5 | 8 | 20.0 d D | |
| 106 | 9.5 | 8 | 10.0<= D | |
| 203 | 8.5 | 5 | 7.0 <= D < 20.0 | |
| 500 | 1 | 0.5 | D < 1.1 | 1005, 1608, SOT(Molded part 1.6 x 0.8) |
| 501 | 0.7 x 0.4 | 2 * 0.2 | D < 0.45 | |
| 502 | 0.7 | 0.4 | 0.45 <= D < 0.75 | |
| 503 | 1 | 0.6 | 0.75 <=D < 1.45 | |
| 504 | 1.5 | 1 | 1.1 <=D < 2.5 | |
| 505 | 3.5 | 1.7 | 2.5 <= D < 4.0 | Aluminum electrolytic capacitor(small), Tantalum capacitor, Trimmer |
| 506 | 5 | 3.2 | 4.0 <= D < 7.0 | Aluminum electrolytic capacitor(medium), SOP(Narrow), SOJ, Connector |
| 507 | 8.5 | 5 | 7.0 <=D < 10.0 | Aluminum electrolytic capacitor(large), SOP(Wide), TSOP, QFP, PLCC, SOJ, Connector |
| 508 | 9.5 | 8 | 10.0 <= D | |
| 511M | 2 | 1.2 | ||
| 503M | 1 | 0.6 | 0.75 <=D < 1.45 | |
| 7500 | 1.0 x 0.5 | 2 x 0.4 | ||
| 7501 | 0.7 x 1.4 | 0.25 | ||
| 7502 | 0.7 | 0.4 | 0.45 <= D < 0.75 | |
| 7503 | 1 | 0.6 | 0.75 <=D < 1.45 | |
| 7504 | 1.5 | 1 | 1.1 <=D < 2.5 | |
| 7505 | 3.5 | 1.7 | 2.5 <= D < 4.0 | Aluminum electrolytic capacitor(small), Tantalum capacitor, Trimmer |
| 7506 | 5 | 3.2 | 4.0 <= D < 7.0 | Aluminum electrolytic capacitor(medium), SOP(Narrow), SOJ, Connector |
| 7507 | 8.5 | 5 | 7.0 <=D < 10.0 | Aluminum electrolytic capacitor(large), SOP(Wide), TSOP, QFP, PLCC, SOJ, Connector |
| 7508 | 10.0 x 8.0 | 8.5 x 6.5 | ||
| 7509 | 0.4 x 0.2 | 0.1 |
