Description

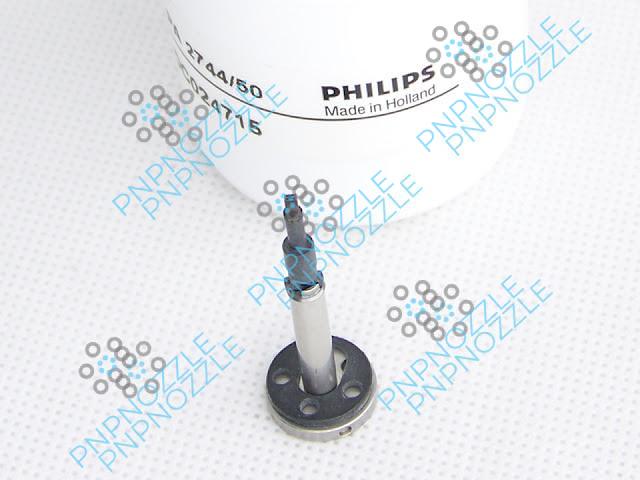

We offer Assembleon Philips SMT AX201 NOZZLE I1 Nozzle ACM-I1-TE PA 2744/50 5322 360 10446, send us your inquiry, we will get back to you ASAP.
Nozzle Compatibility For AX-301 and AX-501
| Part Number | Nozzle | Dimension | Component Range |
| 9498 396 01395 | CPL1 | Length=0.4mm, width=0.2mm | 01005 R/C01005 |
| 9498 396 01396 | CPL2 | Length=0.6-1.0mm, width=0.3-0.5mm | 0201-0402 R/C0201..R/C0402 |
| 9498 396 01397 | CPL3 | Length=1.0-2.1mm, width=0.5-2.0mm | 0402-0603 R/C0402..R/C0603 |
| 9498 396 01398 | CPL4 | Length=1.6-3.2mm, width=0.8-2.5mm | 0603-1206 R/C0603..R/C1206 |
| 9498 396 01180 | L3 | Length=1.0-2.1mm, width=0.5-2.0mm | 0402-0603Placement force > 2N R/C1206..R/C2516 SO14..SO16 |
| 9498 396 01181 | L4 | Length=1.6-3.2mm, width=0.8-2.5mm | 0603-1206Placement force > 2N |
| 9498 396 00134 | L5 | Length=3.2-10.0mm, width=1.6-6.6mm | 1206-2516, SO14-SO16 |
| 9498 396 00135 | L6 | Length=1.6-5.9mm, width=1.0-2.7mm | MELF > 1.0 <2.7mm |
| 9498 396 00136 | L7 | Length=5.2-17.5mm, width=3.2-17.5mm | BGA, SO, SOJ, SSOP, TSSOP, VSO, QFP, TANT |
| 9498 396 00137 | L8 | Length=10-17.5mm, width=10-17.5mm Max. component height 10.5mm | BGA, SO, SOJ, SSOP, TSSOP, VSO, QFP, PLCC |
| 9498 396 01819 | V1 | Length=-5-10mm, width=5-10mm | SO8-SO16L, SSOP20-SSOP28 |
| 9498 396 01820 | V2 | Length=6-14mm, width=6-14mm | SO16-SO16L, SO20-SO28L, VSO40-VSO56, SOP20-SOP56 |
| 9498 396 01876 | V3 | Length=3.0-5.0mm, width=3.0-8.0mm | BGA, SO, SOJ, SSOP, TSSOP, VSO, QFP, PLCC |
| 9466 027 71601 | V4 | Length=8.0-24.0mm, width=4.0-10.0mm | Connectors, maximum height 6.3mm |
| 9466 027 71651 | V5 | Length=10.0-24.0mm, width=10.0-24.0mm Max. component height 6.3mm | black, medium L8 |
| 9466 027 71701 | V6 | Length=10-45mm, width=10-45mm Max. component heigth 4.3mm | black, long L8 |
| 9466 027 71751 | V7 | Length=5.2-17.5mm, width=3.2-17.5mm | BGA, SO, SOJ, SSOP, TSSOP, VSO, QFP, PLCC |
| 9466 027 71801 | V8 | Length=8.0-17.5mm, width=4.0-10.0mm | Connectors, maximum height 10.5mm |
| NA | V9 | Length=3.0-5.0mm, width=3.0-8.0mm | BGA, SO, SOJ, SSOP, TSSOP, VSO, QFP, PLCC |
Nozzle for AX-201
| Part Number | Nozzle | P/N | Remarks |
| 5322 360 10446 | NOZZLE ACM-I1-TE PA 2744/50 | 5322-360-10446 | |
| 5322 360 10447 | NOZZLE ACM-I2-TE PA 2744/60 | 5322-360-10447 | |
| 5322 360 10448 | NOZZLE ACM-I3-TE PA 2744/70 | 5322-360-10448 | |
| 5322 360 10449 | NOZZLE ACM-I5-TE PA 2749/00 | 5322-360-10449 | |
| 5322 360 10451 | NOZZLE ACM-I6-TE PA 2749/10 | 5322-360-10451 | |
| 9498 396 00326 | NOZZLE ACM I4 TE PA 2744/80 | 9498-396-00326 | |
| 9498 396 00327 | NOZZLE ACM I10-TE PA 2749/50 | 9498-396-00327 | |
| 5322 360 10442 | NOZZLE ACM-01-TE PA 2744/10 | 5322-360-10442 | |
| 5322 360 10444 | NOZZLE ACM-03-TE PA 2744/30 | 5322-360-10444 | |
| 5322 360 10445 | NOZZLE ACM-04-TE PA 2744/40 | 5322-360-10445 | |
| 9498 396 01823 | Nozzle O2 PHHA PA 2744/21 | 9498-396-01823 | |
| 9498 396 00329 | NOZZLE ACM O5 PA 2749/61 | 9498-396-00329 | |
| 9498 396 00328 | NOZZLE ACM S1 PA 2749/60 | 9498-396-00328 | |
| 9498 396 00330 | NOZZLE ACM S2 PA 2749/62 | 9498-396-00330 | |
| 9498 396 00331 | NOZZLE ACM S3 PA 2749/63 | 9498-396-00331 | |
| 9498 396 00332 | NOZZLE FC1 PA 2752/00 | 9498-396-00332 | |
| 9498 396 00334 | NOZZLE FC3 PA 2752/20 | 9498-396-00334 | |
| 9498 396 00335 | NOZZLE FC4 PA 2752/30 | 9498-396-00335 | |
| 5322 360 10311 | CALIBRATION NOZZLE Part of set up tooling kit, Calibration, placement head HA | 5322-360-10311 |
Updated Date: 2023-04-25
