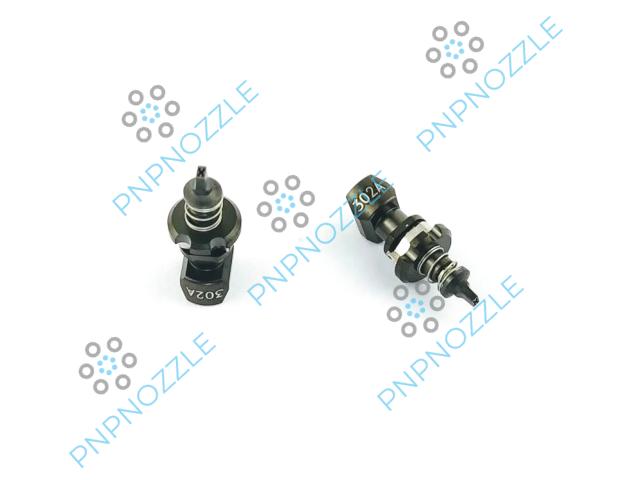

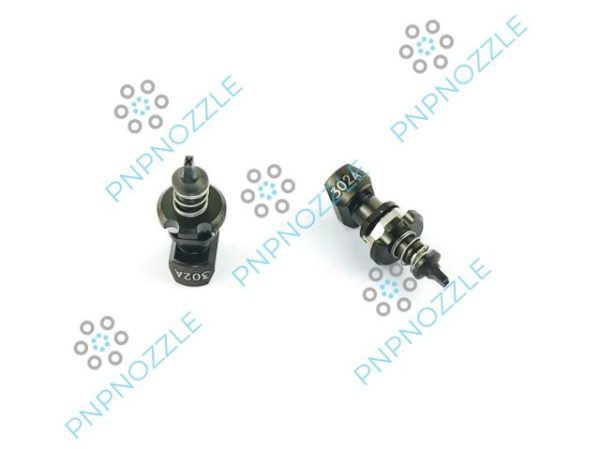

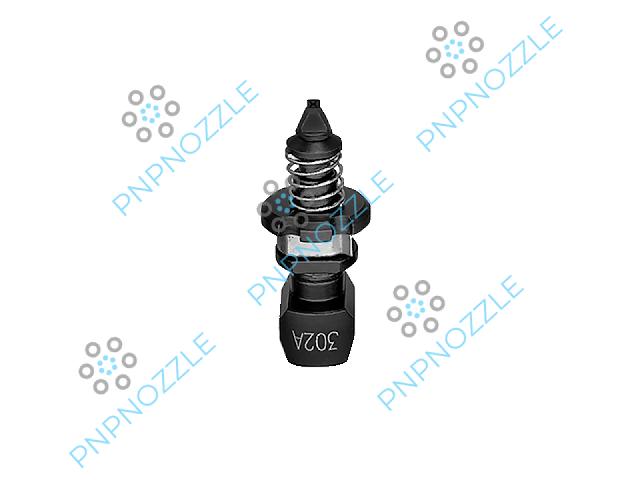

Assembleon MC Yamaha YG300 YG-12 and YS Type 302A Nozzle
302A Nozzle 9498 396 02248
Yamaha smt nozzles and spare parts

Assembleon MC Yamaha YG300 YG-12 and YS Type 302A Nozzle 9498 396 02248

Assembleon MC Yamaha YG300 YG-12 and YS Type 302A Nozzle 9498 396 02248
Used for: Assembleon Yamaha MC YG300 YG-12 YS Pick and Place machine.
Condition: New, Original or Alternate
Part Number: 949839602248
Availability: 48 hours to 2 weeks depending on ordering quantity.

SKU: YMH-ASS-6002 Categories: , , Tag:
Thank you for sharing good thing

Description

We supply large quantity of Nozzles for Assembleon Yamaha MC YG300 YG-12 YS Pick and Place machine. Both of original and alternative nozzless are available.
The good quality and competitive price of Assembleon MC Yamaha YG300 YG-12 and YS Type 302A Nozzle 9498 396 02248 will save your money on the consumables.
If you are looking for 949839602248, please send us your RFQ or submit your inquiry at the “Ask for a quotation” tag.
The nozzles listed below are the common nozzle, if you cannot find what you are looking for, please send us your drawing of nozzles.

Yamaha Nozzles list, 300 Series

No.Part NumberPart NameRemark
1KHN-M7710-A1ASSY 301A NOZZLETYPE 301A
2KHN-M7720-A1NOZZLE 302A ASSYTYPE 302A
3KHY-M7740-A0NOZZLE 303A/314A ASSYTYPE 303A/314A
4KHY-M7750-A0NOZZLE 304A/315A ASSYTYPE 304A/315A
5KHY-M7770-A0NOZZLE 306A/317A ASSYTYPE 306A/317A
6KHY-M77A0-A0NOZZLE 310A ASSYTYPE 310A（Narrow adjacent Type）
7KHY-M7710-A0NOZZLE 311A ASSYTYPE 311A（Narrow adjacent Type）
8KHY-M7720-A0NOZZLE 312A ASSYTYPE 312A（Narrow adjacent Type）
9KHY-M7730-A0NOZZLE 313A ASSYTYPE 313A（Narrow adjacent Type）

Yamaha Nozzles list, 30 Series

No.Part NumberPart NameRemark
1KM0-M711A-31XFLOATING NOZZLE(for Head1)TYPE 31
2KM0-M711A-03XNOZZLE ATYPE 31
3KM0-M711C-02XNOZZLE CTYPE 32-2
4KM0-M711D-00XNOZZLE D COMPTYPE 33
5KM0-M711E-00XNOZZLE COMPType 34
6KM0-M71AB-A0XNOZZLE ABType 35

Yamaha Nozzles list, 30 Series

No.Part NumberPart NameRemark
1KV7-M71N1-A0XNOZZLE 61F ASSYTYPE 61F
2KV7-M71N2-A0XNOZZLE 62F ASSYTYPE 62F
3KV7-M71N3-A0XNOZZLE 63F ASSYTYPE 63F
4KV7-M71N4-A0XNOZZLE 64F ASSYTYPE 64F
5KV7-M71N5-A0XNOZZLE 65F ASSYTYPE 65F

Yamaha Nozzles list, 70 Series

No.Part NumberPart NameRemark
1KV8-M7710-A1XNOZZLE 71A ASSY.
2KV8-M7720-A1XNOZZLE 72A ASSY
3KV8-M7730-00XNOZZLE 73A
4KV8-M7740-A0XNOZZLE 74A ASSY
5KV8-M7741-00XNOZZLE 74A
6KV8-M7760-00XNOZZLE 76A
7KV8-M77WL-A0XCIRCLE NOZZLE 7A

Yamaha Nozzles list, 70 Series for FNC

No.Part NumberPart NameRemark
1KV8-M71N1-A0XNOZZLE 71F ASSYTYPE 71F
2KV8-M71N2-A0XNOZZLE 72F ASSYTYPE 72F
3KV8-M71N3-A0XNOZZLE 73F ASSYTYPE 73F
4KV8-M71N9-A1XNOZZLE 79F ASSYTYPE 79F

Yamaha Nozzles list, 60 Series

No.Part NumberPart NameRemark
1KV7-M7710-A1XNOZZLE 61A ASSY
2KV7-M7720-A1XNOZZLE 62A ASSY
3KV7-M7730-00XNOZZLE 63A
4KV7-M7740-A0XNOZZLE 64A ASSY

Yamaha Nozzles list, 130 Series

No.Part NumberPart NameRemark
1KW7-M7811-00XNOZZLE, 2 SHOT 1608Type 131
2KW7-M7812-00XNOZZLE, 2 SHOT 3216Type 132
3KW7-M7813-00XNOZZLE, 2 SHOT LARGEType 133
4KW7-M7814-00XNOZZLE, 1 SHOT 0.4Type 134
5KW7-M7815-00XNOZZLE, 1 SHOT 0.8Type 135
6KW7-M7816-00XNOZZLE, 1 SHOT 1.5Type 136
7KGK-M7836-00XNOZZLE, HN04 ASSYType 139
8KGK-M7819-00XBODY NOZZLE HNfor Type 139

Yamaha Nozzles list, 200 Series

No.Part NumberPart NameRemark
1KGT-M7710-A0XNOZZLE 201A ASSYType 201A
2KGT-M7720-A0XNOZZLE 202A ASSYType 202A
3KGT-M7730-A1XNOZZLE 203A ASSYType 203A
4KGT-M7760-A0XNOZZLE 206A ASSYType 206A
5KGT-M7790-A0XNOZZLE 209A ASSYType 209A
6KV8-M71U0-01XNOZZLE ASSY71/ 72/ 73F
7KV8-M71U0-10XNOZZLE ASSY71/ 79/ 73F

Updated Date: 2023-04-25
