Description

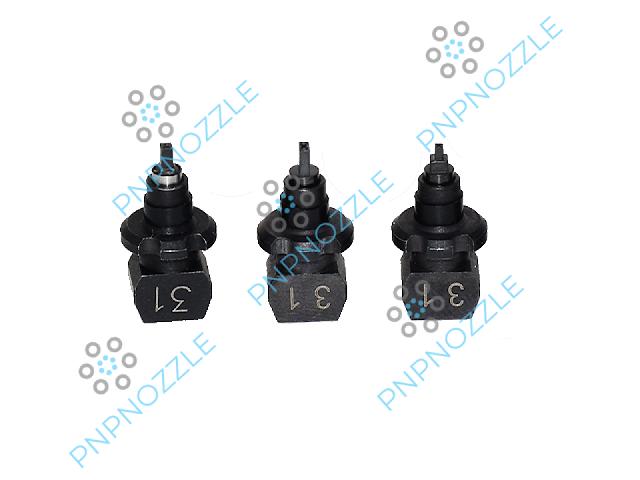

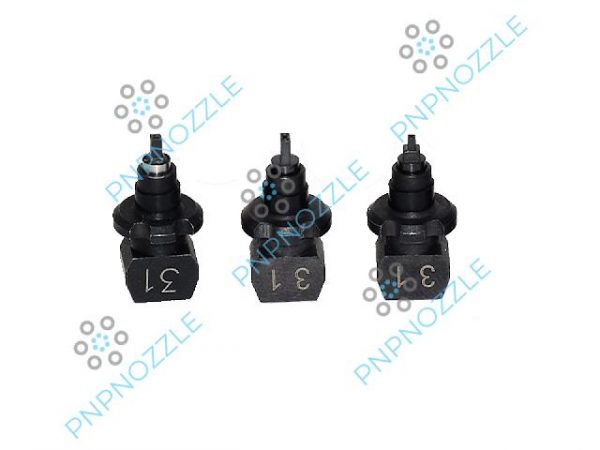

We offer Assembleon GEM Yamaha YV100II and YVL88 Type 31 31A X tip nozzle 5322 360 10425 532236010425 for SMT pick and place machine, send us your inquiry if you cannot find what you are looking for.
The whole series Assembleon/Yamaha nozzles list below for your reference.
Yamaha Nozzles list, 300 Series
No. Part Number Part Name Remark 1 KHN-M7710-A1 ASSY 301A NOZZLE TYPE 301A 2 KHN-M7720-A1 NOZZLE 302A ASSY TYPE 302A 3 KHY-M7740-A0 NOZZLE 303A/314A ASSY TYPE 303A/314A 4 KHY-M7750-A0 NOZZLE 304A/315A ASSY TYPE 304A/315A 5 KHY-M7770-A0 NOZZLE 306A/317A ASSY TYPE 306A/317A 6 KHY-M77A0-A0 NOZZLE 310A ASSY TYPE 310A（Narrow adjacent Type） 7 KHY-M7710-A0 NOZZLE 311A ASSY TYPE 311A（Narrow adjacent Type） 8 KHY-M7720-A0 NOZZLE 312A ASSY TYPE 312A（Narrow adjacent Type） 9 KHY-M7730-A0 NOZZLE 313A ASSY TYPE 313A（Narrow adjacent Type）
Yamaha Nozzles list, 30 Series
No. Part Number Part Name Remark 1 KM0-M711A-31X FLOATING NOZZLE(for Head1) TYPE 31 2 KM0-M711A-03X NOZZLE A TYPE 31 3 KM0-M711C-02X NOZZLE C TYPE 32-2 4 KM0-M711D-00X NOZZLE D COMP TYPE 33 5 KM0-M711E-00X NOZZLE COMP Type 34 6 KM0-M71AB-A0X NOZZLE AB Type 35
Yamaha Nozzles list, 30 Series
No. Part Number Part Name Remark 1 KV7-M71N1-A0X NOZZLE 61F ASSY TYPE 61F 2 KV7-M71N2-A0X NOZZLE 62F ASSY TYPE 62F 3 KV7-M71N3-A0X NOZZLE 63F ASSY TYPE 63F 4 KV7-M71N4-A0X NOZZLE 64F ASSY TYPE 64F 5 KV7-M71N5-A0X NOZZLE 65F ASSY TYPE 65F
Yamaha Nozzles list, 70 Series
No. Part Number Part Name Remark 1 KV8-M7710-A1X NOZZLE 71A ASSY. 2 KV8-M7720-A1X NOZZLE 72A ASSY 3 KV8-M7730-00X NOZZLE 73A 4 KV8-M7740-A0X NOZZLE 74A ASSY 5 KV8-M7741-00X NOZZLE 74A 6 KV8-M7760-00X NOZZLE 76A 7 KV8-M77WL-A0X CIRCLE NOZZLE 7A
Yamaha Nozzles list, 70 Series for FNC
No. Part Number Part Name Remark 1 KV8-M71N1-A0X NOZZLE 71F ASSY TYPE 71F 2 KV8-M71N2-A0X NOZZLE 72F ASSY TYPE 72F 3 KV8-M71N3-A0X NOZZLE 73F ASSY TYPE 73F 4 KV8-M71N9-A1X NOZZLE 79F ASSY TYPE 79F
Yamaha Nozzles list, 60 Series
No. Part Number Part Name Remark 1 KV7-M7710-A1X NOZZLE 61A ASSY 2 KV7-M7720-A1X NOZZLE 62A ASSY 3 KV7-M7730-00X NOZZLE 63A 4 KV7-M7740-A0X NOZZLE 64A ASSY
Yamaha Nozzles list, 130 Series
No. Part Number Part Name Remark 1 KW7-M7811-00X NOZZLE, 2 SHOT 1608 Type 131 2 KW7-M7812-00X NOZZLE, 2 SHOT 3216 Type 132 3 KW7-M7813-00X NOZZLE, 2 SHOT LARGE Type 133 4 KW7-M7814-00X NOZZLE, 1 SHOT 0.4 Type 134 5 KW7-M7815-00X NOZZLE, 1 SHOT 0.8 Type 135 6 KW7-M7816-00X NOZZLE, 1 SHOT 1.5 Type 136 7 KGK-M7836-00X NOZZLE, HN04 ASSY Type 139 8 KGK-M7819-00X BODY NOZZLE HN for Type 139
Yamaha Nozzles list, 200 Series
No. Part Number Part Name Remark 1 KGT-M7710-A0X NOZZLE 201A ASSY Type 201A 2 KGT-M7720-A0X NOZZLE 202A ASSY Type 202A 3 KGT-M7730-A1X NOZZLE 203A ASSY Type 203A 4 KGT-M7760-A0X NOZZLE 206A ASSY Type 206A 5 KGT-M7790-A0X NOZZLE 209A ASSY Type 209A 6 KV8-M71U0-01X NOZZLE ASSY 71/ 72/ 73F 7 KV8-M71U0-10X NOZZLE ASSY 71/ 79/ 73F
